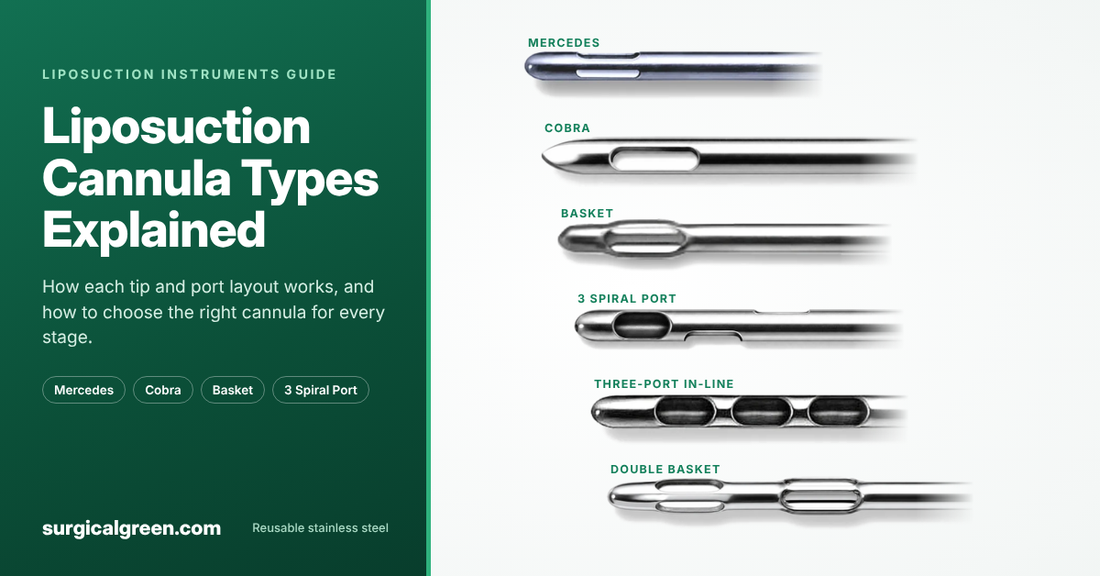

Liposuction Cannula Types Explained: Mercedes, Cobra, Basket, 3 Spiral Port and More

Updated October 2026

Liposuction cannula types are grouped by job (infiltration, fat removal, fat harvesting, fat injection) and then by tip design. The tip design is the shape of the end plus the number, size and position of its ports. Fewer, smaller ports and a blunt tip remove fat more gently. More, larger or flared ports remove fat faster and more aggressively. Named patterns such as Mercedes, Cobra and Basket are shorthand for particular port layouts. Spiral designs, such as a 3 spiral port cannula, place openings around the shaft to remove fat in more than one plane.

Key takeaways

• Choose between liposuction cannula types by procedure stage first, then by tissue, depth and area.
• Port count, port size and port direction matter as much as diameter.
• Named tips are not standardised. Two suppliers' "Mercedes" cannulas can differ, so always compare the actual port layout.
• Start conservatively. A single-port, rounded-tip cannula is the safe first choice for many cases, according to Collins in the Springer textbook Liposuction (2006).

Introduction

Most guides list liposuction cannula types as "standard, micro, tumescent" and stop there. That is not how surgeons and theatre managers actually order instruments. They order by tip: a Mercedes for general contouring, a Basket for multi-directional removal, a blunt injector for fat transfer.

This guide explains the main types of liposuction cannulas by tip, how tip design changes the way a cannula removes fat, and how to match a tip to the procedure stage and the tissue. It is written for surgeons, clinic owners and procurement staff buying reusable liposuction instruments in the UK.

If you need the basics first (what a cannula is, sizes, materials and sterilization), start with our liposuction cannula buyer's guide. This article focuses on the tip.

What Are the Main Types of Liposuction Cannulas?

There are four main types of liposuction cannulas, defined by the job they do in the procedure. Every named tip belongs to one of these families.

Liposuction cannula types	Job in the procedure	Typical tip	Surgical Green collection
Infiltration (tumescent) cannula	Delivers tumescent fluid before fat removal	Blunt, many small side holes	Infiltration Cannulas
Aspiration (suction) cannula	Removes fat for body contouring	Blunt or beveled, 1 to 6+ ports	Large Volume Harvester
Fat harvesting cannula	Collects fat intended for grafting	Blunt, small micro-ports	Aspirators / Fat Harvesters
Fat injection (grafting) cannula	Re-injects processed fat	Blunt or spoon tip, single opening	Fat Grafting Cannulas

Two further distinctions cut across all types of liposuction cannulas:

• Size: microcannulas versus standard cannulas. In Klein's tumescent technique textbook, a microcannula has an inside diameter of 2.2 mm or less.
• Use: reusable stainless steel versus single-use. See single-use vs reusable liposuction cannulas for that decision.

How Does Tip Design Change the Way a Cannula Removes Fat?

Across all types of liposuction cannulas, tip design controls how much fat each stroke removes and how close to the skin the cannula can safely work. That is why tip choice changes both speed and smoothness.

Fat is not a liquid. Klein's textbook explains that a stationary cannula under vacuum removes almost nothing. Fat is pulled into a port, then torn away as the cannula moves back and forth. So the port is where the work happens.

Blunt vs sharp or bevelled tips

• Blunt (rounded) tips push past vessels and fibrous strands rather than cutting them. They are the default for infiltration, harvesting and injection.
• Beveled or semi-sharp tips cut through tougher tissue more easily. They suit fibrous areas and dissection, but need more care near the skin.

Single-port vs multi-port

Klein identifies three factors that drive cannula efficiency: total port area, the total length of port edges, and stroke speed. In practice:

• More ports or larger ports = more fat per stroke = faster, more aggressive removal.
• Several small ports can be more efficient than one large port of the same area, because they have more edges to shear fat. There is a point of diminishing returns.
• One port gives the most directional control.

Port direction

• Ports on one side can be turned away from the skin, which gives more control near the surface.
• Ports all around the shaft (spiral or helical layouts) remove fat in every direction. They are among the more efficient liposuction cannula types but should not be used close to the skin's underside.

Diameter and powered use

Diameter interacts with tip design. In power-assisted liposuction (PAL), a review on Plastic Surgery Key notes that a 3 mm powered cannula may create a 4 mm or larger tunnel. Surgeons are advised to choose a smaller cannula than usual for PAL.

Named Liposuction Cannula Tip Types Explained

Named liposuction cannula types are trade shorthand for a port layout. Names are not standardized across manufacturers, so treat these types of liposuction cannulas as typical patterns and always check the photo and port count on the product page.

Standard cannulas (1, 2 or 3 ports)

The standard cannula is a straight tube with one to three ports near a rounded tip. Collins describes the round- or tapered-tip, single-port cannula as a safe, conservative choice for less experienced surgeons. Adding ports increases fat removal per stroke.

Surgical Green stocks Standard Cannulas with one, two or three ports. The single-port version has a large 10 mm opening.

Mercedes cannula

"Mercedes" describes a multi-hole cannula, but the layout varies widely by manufacturer. In some catalogues it means three holes near the tip. Other suppliers use the name for several flared holes along the stem. Spreading suction across several holes helps reduce grooving compared with a single large port.

Surgical Green's Mercedes Liposuction Cannula has large flared holes spread evenly along the stem in a spiral pattern. It comes in 2.4 to 5.0 mm diameters and 20 to 35 cm lengths, from £40. The Double Mercedes Cannula uses the same flared spiral openings in the same size range.

Cobra cannula

A Cobra cannula has large openings arranged in parallel along the end of the stem. Following Klein's principle that larger port area means more fat per stroke, the large openings make this a higher-efficiency tip, better matched to deeper work than to fine finishing near the skin.

Surgical Green offers two versions: the Cobra Cannula, Round Tip (3.0 to 5.0 mm) and the Cobra Cannula, Beveled Tip (2.4 to 5.0 mm). Both have large parallel openings, come in 20 to 35 cm lengths and start from £40.

Basket cannula

A Basket cannula has flared ports arranged in a spiral, giving a cage-like look at the tip. Following Klein's principle that more port edges mean more shearing, flared multi-directional ports make this a high-efficiency pattern, typically considered for denser tissue.

Surgical Green's Basket Shaped Cannula has a blunt tip with large flared openings in a spiral, in 2.4 to 5.0 mm and 20 to 35 cm, from £50. The Double Basket Cannula uses the same layout, from £40.

Spiral, Candy Cane and Pyramid patterns

• Spiral-port cannulas (for example a 3 spiral port cannula or 6 spiral ports) place ports around the shaft, so fat is removed in more than one plane.
• Candy Cane cannulas use a spiral-port arrangement that resembles candy-cane stripes.
• Pyramid, Reverse Pyramid and Stevens-style cannulas group ports in a triangular pattern. Surgical Green lists its Pyramid Style Cannula with 3 ports.

Dissector tips: V-shaped (Toledo-style), Fork and Flap

Dissector tips differ from other types of liposuction cannulas: they are designed to release tissue, not just aspirate it. A Toledo-style "V" cannula has an atraumatic V channel at the tip for tissue undermining.

Surgical Green stocks a V-Shaped Dissector Cannula (single-port and port less versions), a Fork Dissector and a Flap Dissector. The product pages describe them as multi-use instruments for equalizing, injection and suction.

Three-port in-line cannulas

A three-port in-line cannula has three ports in a straight row along one side of the stem, behind a blunt tip. Because all the ports face the same way, suction is directional. The surgeon can turn the ports away from the skin for safer superficial passes, or towards deeper fat for removal. It removes more fat per stroke than a single-port cannula, and its one-way ports give more control than designs with ports all around the shaft.

Surgical Green's Standard Cannula – Three Ports is its three-port standard option, with a blunt tip, 2.4 to 5.0 mm diameters and 20 to 35 cm lengths, from £40 depending on the hub.

Comparison table: liposuction cannula types by tip

This table compares liposuction cannula types by port layout and tip shape. The aggressiveness column is a general guide based on port count, size and edge design. It is not a measured value, and results depend on diameter, vacuum and technique.

Tip type	Port layout	Tip shape	Relative aggressiveness	Typical use
Standard, single port	1 port	Rounded	Low	Conservative removal, superficial passes
Mercedes	3 holes near the tip, or flared holes along the stem (varies by maker)	Rounded	Moderate	General body contouring
Spiral / Candy Cane	6 or more ports around the shaft	Rounded	Moderate to high	Multi-plane removal, deeper layers
Cobra	Large parallel openings	Rounded or bevelled	High	Debulking deep fat
Basket	Flared spiral ports	Rounded	High	Fibrous areas, revisions
V-shaped / Toledo-style dissector	V channel, 0 or 1 port	Semi-sharp fork	Dissection, not volume	Releasing fibrous bands, undermining
3 spiral port cannula	3 ports in a spiral around the shaft	Blunt	Moderate	Multi-plane removal and harvesting

What Is a 3 Spiral Port Cannula?

A 3 spiral port cannula is a blunt-tip liposuction cannula with three ports set at different angles around the shaft, rather than in one row. Each stroke draws fat from more than one plane, which helps even out removal and reduce grooving. Among liposuction cannula types, it sits between in-line standard cannulas and high-efficiency Basket or Cobra tips.

How it compares with a three-port in-line cannula:

• Port direction: spiral ports face several directions; in-line ports all face one way.
• Control near the skin: in-line ports can be turned away from the dermis. Spiral ports cannot all be turned away, so they suit deeper layers better.
• Coverage: spiral ports work across more planes per pass, which helps with even contouring and with harvesting across a wide area.

Surgical Green's Liposuction Cannula – 3 Spiral Ports has three large grooved ports and a blunt tip, in 2.4 to 5.0 mm diameters and 20 to 35 cm lengths, from £40 with a Luer Lock hub. For single-use work, the Single Use 3-Port Spiral Harvesting Cannula starts at £10, and the 6 Spiral Ports version adds more openings for faster removal. If you are harvesting fat for transfer, our fat grafting cannula guide covers harvester tips in more detail.

Which Cannula Tip Suits Each Procedure Stage?

Match liposuction cannula types to the procedure stage first. The table maps each stage to the tip characteristics usually needed and to examples from the Surgical Green range. Prices are the Luer Lock starting price.

Procedure stage	Tip characteristics	Surgical Green examples	From
Infiltration	Blunt tip, many small side or spiral holes	Infiltration Cannula Standard, Bayonet, Tumescent, Angled, Face Lift	£35 to £50
Debulking (deeper fat)	Larger or more ports: Cobra, Basket, spiral	Cobra Round Tip, Cobra Beveled, Basket, Double Basket, 6 Spiral Ports	£40 to £50
General contouring	Moderate ports: Mercedes, 2 to 3 port standard	Mercedes, Standard 2 or 3 Ports, 3 Spiral Ports, Pyramid Style	£40
Finishing and superficial passes	Fewer, smaller ports; ports facing away from skin	Standard Single Port, Half Cut Tip	£40
Releasing fibrous bands	Dissector tips	V-Shaped Dissector, Fork Dissector, Flap Dissector	£50
Fat harvesting for grafting	Blunt tip, micro-ports	Smooth Harvester with Micro Ports, Moderate Multiport Harvester	£50
Fat injection	Blunt or spoon tip, single opening	Blunt Tip Injector, Spoon Tip Injector, Micro Hole Injector	£50

Hub choice changes the price. On Surgical Green's product pages, Ultra Luer Lock and Threaded Connector versions are £70, Toomey 60cc versions £100, and Power Handle versions £150. Browse the full range in Large Volume Harvester, Fat Harvesters and Fat Grafting Cannulas.

Which Tip for Which Area or Tissue?

Area and tissue density narrow the choice of liposuction cannula types further. These are general principles from the sources cited, not procedure instructions. Technique remains the surgeon's decision.

• Face, neck and delicate areas: microcannulas. Klein describes small-gauge microcannulas for the lower face and submental area.
• Arms and thighs: Klein calls the 14 gauge (2.1 mm outside diameter) microcannula the most versatile, and particularly useful here.
• Fibrous areas (back, flanks, male chest, revision cases): Plastic Surgery Key notes power-assisted liposuction is particularly helpful here. One Baltimore surgeon writes that he uses a serrated cannula for the tough upper back.
• Close to the skin: choose liposuction cannula types with fewer, smaller ports turned away from the dermis, and gentle strokes.
• Fat for grafting: small micro-ports and a blunt tip, so fat is collected in small parcels for re-injection.

How to Choose Between Liposuction Cannula Types

Use this checklist when comparing types of liposuction cannulas for a new or existing set:

1. Procedure stage. Different liposuction cannula types suit infiltration, removal, harvesting and injection.
2. Tissue and depth. Fibrous or soft, deep or superficial.
3. Diameter. Smaller for fine work and for powered use; larger for debulking.
4. Port count and size. More and larger ports remove fat faster but leave less margin for error.
5. Port direction. One side for work near the skin; all around for deeper multi-plane removal.
6. Tip shape. Blunt for most stages; bevelled or semi-sharp only where tissue resistance calls for it.
7. Length. Long enough to reach the treatment zone from the access incision without excessive leverage.
8. Hub and connection. Luer Lock, Ultra Luer Lock, Toomey 60cc, threaded connector or power handle must match your syringe, tubing or device.
9. Reusable or single-use. Reusable cannulas need validated cleaning and sterilisation. Surgical Green's reusable cannulas are supplied non-sterile; single-use cannulas are also available.
10. Documentation. Ask for regulatory and test documentation. Surgical Green states its instruments are UKCA marked and MDR compliant; see our certifications.

Practical example: a clinic setting up for abdominal contouring with fat transfer might choose four types of liposuction cannulas: a multi-hole infiltration cannula, a Mercedes and a Cobra for removal, a micro-port harvester for graft collection and a blunt injector for placement. The exact sizes depend on the surgeon's technique. To start from a ready-made selection, see our suggested lipo sets.

Common Mistakes When Choosing Types of Liposuction Cannulas

• Using an aggressive tip too close to the skin. Klein warns that a highly efficient microcannula used too superficially can damage the vascular layer under the skin.
• Switching to a more efficient design without adjusting technique. Klein notes that highly efficient microcannulas remove fat faster than many surgeons expect.
• Assuming names are standard. Two cannulas sold under the same name, such as Mercedes or Basket, can have different port layouts. Liposuction cannula types are not standardized between suppliers. Compare photos and port counts.
• Ignoring tunnel size with powered liposuction. A powered 3 mm cannula can cut a 4 mm or larger tunnel.
• Buying the wrong hub. A Toomey-hub cannula will not fit a Luer Lock syringe without an adaptor.
• Letting fat dry in small ports. Klein notes that residual fat that dries inside small apertures plugs them and needs special cleaning.

Caring for Multi-Port and Micro-Port Tips

Some liposuction cannula types are harder to clean than others: small, numerous ports clog more easily than a single large port. Klein's care protocol includes:

1. Soaking in detergent immediately after surgery.
2. Flushing through the lumen.
3. Brushing with the largest brush that fits.
4. Ultrasonic cleaning.
5. A distilled-water rinse.
6. Autoclaving.

Surgical Green cannulas are supplied non-sterile, so they must be cleaned, inspected and sterilized before first use. Follow your facility's validated protocol and our instrument care guidance.

Frequently Asked Questions

What are the different types of liposuction cannulas?

The main liposuction cannula types are infiltration, aspiration, fat harvesting and fat injection cannulas. Within each, cannulas differ by tip design (blunt or beveled), port layout (Standard, Mercedes, Cobra, Basket, spiral) and size (microcannula or standard).

What is a Mercedes liposuction cannula?

A Mercedes cannula is a multi-hole aspiration cannula. Some makers use three holes near the tip; others, including Surgical Green, use flared holes spread along the stem in a spiral. It spreads suction across several openings and is a common general-purpose choice for body contouring.

Which liposuction cannula type is least aggressive?

A single-port cannula with a rounded tip is the least aggressive of the common liposuction cannula types.

Which cannula tip is best for fibrous fat?

There is no single best tip. Options include high-efficiency flared or spiral ports, bevelled tips, dissector tips to release fibrous bands, and power-assisted liposuction. Small microcannulas can also penetrate fibrous tissue with little force, according to Klein. The choice depends on the surgeon's technique.

What is a 3 spiral port cannula?

A 3 spiral port cannula is a blunt-tip liposuction cannula with three ports arranged in a spiral around the shaft. It removes or harvests fat from more than one plane per stroke, and it is a moderate option between single-port and high-efficiency tips.

What is the difference between a spiral port and an in-line cannula?

A spiral port cannula has openings facing several directions around the shaft, so it works across several planes at once. An in-line cannula has its ports in one row on one side, so suction is directional and the ports can be turned away from the skin.

Can one cannula type be used for every stage?

Not usually. Collins notes there is no one proper cannula for a liposuction procedure, and using more than one type is often prudent. Most sets include separate liposuction cannula types for infiltration, removal and grafting.

Are Surgical Green cannulas sterile?

No. Surgical Green's reusable cannulas are supplied non-sterile and must be cleaned and sterilised before first use.

Conclusion

Choosing between liposuction cannula types comes down to three decisions: the procedure stage, the tissue, and how much margin for error you need near the skin. For all types of liposuction cannulas, port count, size and direction drive aggressiveness more than the tip's name does. Named patterns such as Mercedes, Cobra and Basket are useful shorthand, but always confirm the actual port layout before buying.

Browse Surgical Green's Large Volume Harvester collection for Mercedes, Cobra, Basket, spiral-port and other types of liposuction cannulas, or see the full liposuction range.

Sources and References

1. Klein JA. The Tumescent Technique, Chapter 27: Microcannulas. Liposuction 101
2. Collins PS. "Cannula Designs." In: Liposuction. Springer, 2006, pp 85–90. DOI 10.1007/3-540-28043-X_14
3. Dent BL, Preminger BA. "Power-Assisted Liposuction Cannula Types and Technique." Plastic Surgery Key
4. Sterodimas A, Boriani F, et al. "Thirtyfour years of liposuction: past, present and future" (2012). ResearchGate
5. Rodriguez RL. "Liposuction cannulas – Size affects surgical results." Cosmeticsurg

This article is for medical professionals and procurement teams. It does not replace surgical training or manufacturer instructions for use.
